GAOFA TECH supports steel tube inspection, metal tube quality control and inspection planning for stainless steel tubes, titanium tubes, nickel alloy tubes and enhanced heat transfer tubes. Inspection topics may include material verification, dimensional control, surface review, ultrasonic testing, eddy current testing, PMI checking, pneumatic testing, packing inspection and supporting documents.
Inspection scope should be confirmed according to the applicable standard, customer drawing, purchase specification, tube application, working medium, pressure, temperature, corrosion condition and agreed order requirement. For broader RFQ preparation, see the Tube Inquiry Checklist.
Tube quality control is not only a general factory statement. For industrial tube buyers, the inspection method should be connected with the product type, material grade, dimensional tolerance, surface finish, testing standard and final application.
Stainless steel seamless tubes, stainless steel welded tubes, titanium tubes, nickel alloy tubes, enhanced heat transfer tubes and titanium sheet may require different inspection points. GAOFA TECH helps buyers clarify these requirements before order confirmation.
Important note: Inspection examples shown on this page do not mean every product or every order uses the same test. The final inspection scope depends on the agreed standard, customer specification, order details and application requirement.
These short videos show typical steel tube inspection and metal tube quality control examples. They are provided to help buyers understand possible inspection steps before discussing detailed order requirements.
Handheld spectrometer checking can be used for on-site PMI or material grade verification. Final chemical composition should be based on MTC or agreed laboratory testing when required.
Material verification · Grade confirmationOuter diameter inspection helps confirm whether the tube size meets the agreed tolerance, drawing or purchase specification.
Dimensional control · OD tolerance reviewWall thickness inspection is used to check whether the tube wall meets the agreed standard, tolerance or customer drawing requirement.
Dimensional control · Wall tolerance reviewVisual inspection is used to review tube surface condition, scratches, dents, oxide, cleanliness, tube end condition and packing-related appearance.
Surface review · Appearance and handling conditionSponge cleaning can be used to help check and improve internal tube cleanliness for selected tube orders where inner surface condition, dryness or residue control is important.
Internal cleanliness · Confirm before productionEddy current testing (ECT) can be used as a non-destructive testing method for tube integrity review according to applicable standards or customer requirements.
ECT / NDT method · Scope depends on specificationPneumatic testing can be arranged when required by customer specification to check tube tightness or leakage-related requirements.
Testing method · Confirm before order productionUltrasonic testing, also referred to as ultrasonic flaw detection, can be discussed for selected tube products according to material, size range, wall thickness, standard and customer specification.
UT / ultrasonic flaw detection · Confirm acceptance criteriaFatigue testing can be discussed for selected tube products or development projects where repeated loading, vibration, thermal cycling or forming performance needs to be reviewed.
Development testing · Not a routine test for every orderThe table below explains common inspection items that may be discussed for stainless steel tubes, titanium tubes, nickel alloy tubes and enhanced heat transfer tubes.
| Inspection Item | Purpose | Typical Confirmation Points |
|---|---|---|
| Material Verification | Confirm material grade and traceability | MTC, heat number, chemical composition, PMI if required and grade marking |
| Dimensional Inspection | Check whether tube dimensions meet the agreed requirement | OD, wall thickness, length, tolerance, ovality, straightness and cut length |
| Wall Thickness Inspection | Review tube wall thickness and tolerance consistency | Wall thickness measurement according to standard, drawing or agreed inspection method |
| Mechanical Testing | Verify mechanical performance according to the standard | Tensile test, hardness, flattening, flaring, expansion or other standard-required tests |
| Non-Destructive Testing | Review tube integrity without damaging the tube | Eddy current, ultrasonic testing, hydrostatic, pneumatic or other NDT according to specification |
| Ultrasonic Testing (UT) | Discuss ultrasonic flaw detection for selected tube products and applications | Applicable material, size range, wall thickness, standard, acceptance criteria and customer specification should be confirmed |
| Surface Inspection | Check inner and outer surface condition | Scratches, dents, oxide, cleanliness, roughness, BA / EP surface requirement where applicable |
| Internal Cleanliness Check | Review inner surface condition, residue risk or cleanliness requirement | Sponge cleaning, air blowing, visual review or agreed cleanliness requirement depending on application |
| Fatigue Testing | Review repeated loading, vibration, thermal cycling or forming performance for selected projects | Testing conditions, cycle count, load condition and acceptance criteria should be agreed before testing |
| Enhanced Tube Geometry | Confirm special groove, fin or enhanced structure | Groove angle, fin height, fin pitch, wall thickness, drawing, sample or agreed geometry |
| Packing Inspection | Protect tubes during storage, handling and international transport | Bundle method, wrapping, tube end protection, wooden case, labels and packing photos if required |
| Supporting Documents | Provide order-related quality and shipment support information | MTC, inspection report, packing list, certificate of origin or customer-specific document request |
Different tube products require different inspection priorities. The following examples help buyers prepare clearer RFQs.
Common review points include OD, wall thickness, straightness, surface finish, eddy current, pneumatic testing, UT discussion, MTC and PMI if required.

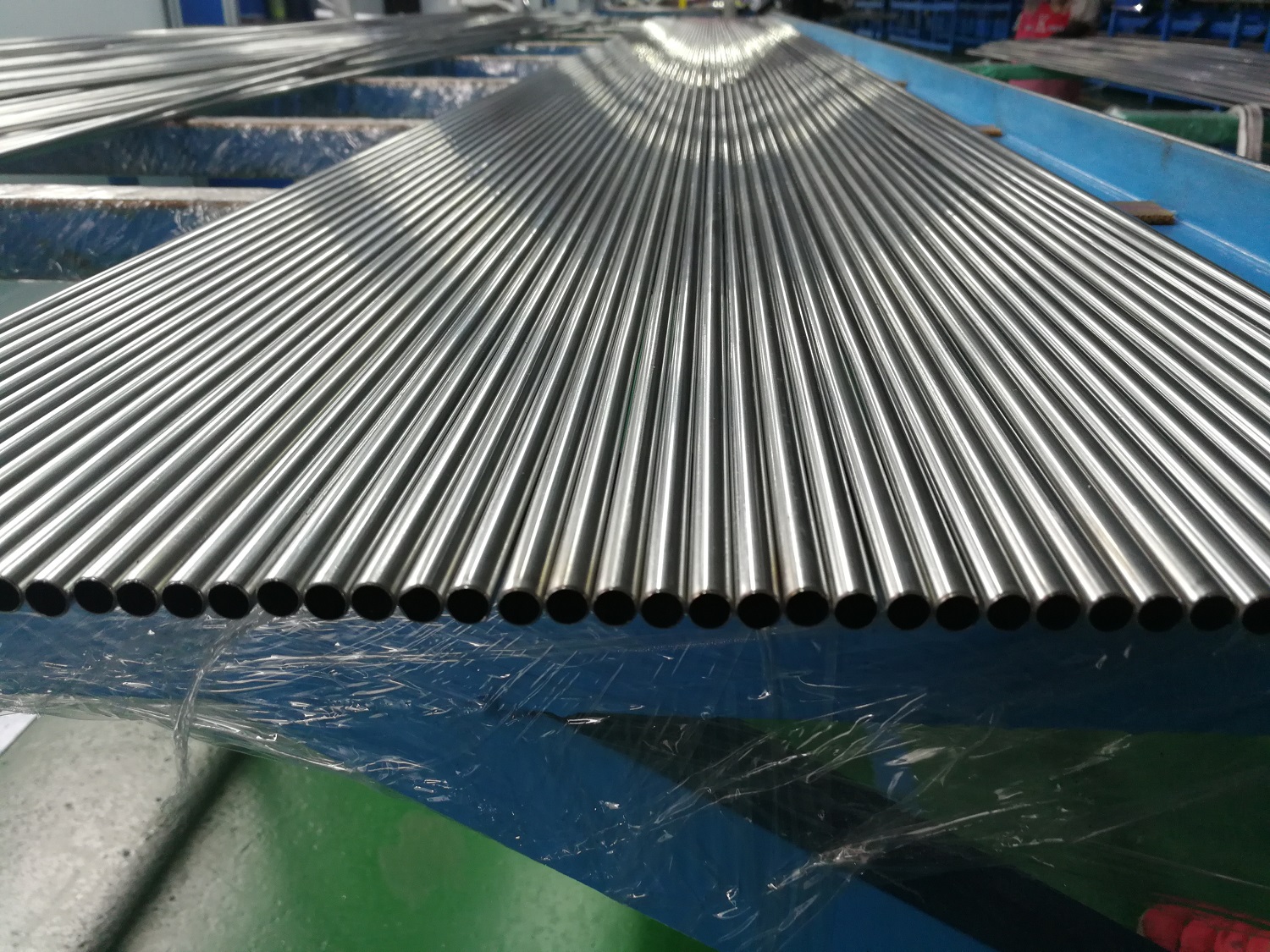

Weld bead condition, dimensional control, surface finish, straightness, eddy current testing and application-specific requirements should be confirmed.
For titanium tubes, inspection requirements may include dimensional inspection, surface inspection, eddy current testing, ultrasonic testing, pneumatic or hydrostatic testing and material traceability review depending on the applicable standard and customer specification.
Incoloy, Inconel and Hastelloy tubes often require careful grade confirmation, MTC review, surface inspection, PMI checking and application-specific testing.
Inner grooved tubes and low fin tubes may require geometry checking, drawing comparison, base tube inspection, fatigue-related development testing and packing protection review.
For PHE titanium sheet, thickness, surface, flatness, grain size, forming requirement and packing protection should be confirmed.
UT note: Ultrasonic Testing (UT), also referred to as ultrasonic flaw detection, can be discussed for selected tube products according to material, size range, wall thickness, standard and customer specification. The UT video above is provided as a visual reference for buyer discussion.
Application note: Inspection planning should also match the application. Heating element tubes may focus on internal cleanliness, dryness, straightness and tightness testing; heat exchanger tubes may focus on dimensional control, NDT, tube integrity and material traceability; seawater or chemical equipment tubes may require additional material verification and corrosion-related review.
Clear inspection requirements should be confirmed before production starts. This helps avoid missing test methods, unclear acceptance criteria or incorrect supporting documents.
Confirm material, tube type, size, standard, surface finish and application.
Review ASTM, EN, JIS, GB, customer drawing or purchase specification.
Clarify eddy current testing (ECT), UT, hydrostatic, pneumatic, PMI, roughness, fatigue or other testing.
Confirm MTC, inspection report, photos, packing list or other supporting documents.
Check tube protection, packing method, labels and shipment-related details.
For overseas industrial buyers, supporting documents and packing details should be confirmed together with inspection items.
Documentation note: Supporting documents should be confirmed before order confirmation. GAOFA TECH does not recommend adding critical test or document requirements only after production is completed.
When sending a tube inquiry, please include inspection requirements together with the product specification. Buyers can also review the Tube Inquiry Checklist before sending technical details.
This helps review inspection feasibility, acceptance criteria, document preparation and packing requirements before quotation or order confirmation.
Please send your product specification, applicable standard, testing requirement, acceptance criteria, document request, packing requirement and application background. GAOFA TECH will review the inspection scope before quotation or order confirmation.
Eddy current testing (ECT) can be discussed according to the product type, standard, size range and customer requirement. It should be confirmed before order production.
Ultrasonic Testing (UT), also referred to as ultrasonic flaw detection, can be discussed for selected tube orders according to material, size range, wall thickness, applicable standard and customer specification. Testing scope and acceptance criteria should be confirmed before production.
No. Pneumatic testing and hydrostatic testing are different methods. The suitable method should be selected according to the product standard, customer specification, safety requirement and application.
Handheld spectrometer checking is commonly used for PMI or material grade verification. Final chemical composition should be based on MTC or agreed laboratory testing when required.
Internal cleanliness checking or sponge cleaning can be discussed for selected tube orders, especially where inner surface condition, dryness or residue control is important. The exact requirement should be confirmed before production.
Fatigue testing can be discussed for selected tube products or development projects. Testing conditions, cycle count, load condition and acceptance criteria should be agreed before testing.
Inspection photos or short videos can be discussed for selected orders. Availability depends on the product type, inspection stage, order arrangement and agreed requirement.
Common supporting documents may include MTC, inspection report, packing list, certificate of origin and customer-specific documents confirmed before order.
No. Stainless steel tubes, titanium tubes, nickel alloy tubes, enhanced heat transfer tubes and titanium sheet may require different inspection items. The inspection process should follow the agreed product standard and customer specification.
Critical inspection requirements should be confirmed before production. Some tests or documents may not be possible to add after production is completed.
For heating element tubes, buyers often review OD, wall thickness, straightness, cut length, surface condition, internal cleanliness, dryness, tube end protection, material verification and tightness testing. The final scope should match heater design, filling process, working medium, temperature and customer specification.
For heat exchanger tubes, buyers often review dimensional tolerance, wall thickness, surface condition, tube integrity, eddy current testing, ultrasonic testing, hydrostatic or pneumatic testing, material traceability and packing protection. Tube-side medium, shell-side medium, pressure, temperature and applicable standard should be confirmed.
Titanium tube inspection may include dimensional inspection, surface review, material traceability, eddy current testing, ultrasonic testing, pneumatic or hydrostatic testing and packing protection. The scope should follow titanium grade, tube form, application, size range, wall thickness, standard and customer specification.
Nickel alloy tube inspection often focuses on grade traceability, MTC review, PMI checking, dimensional inspection, surface condition, NDT scope, heat number identification and application-specific requirements. Incoloy, Inconel and Hastelloy tubes should be reviewed according to grade, standard, working medium and service temperature.
Buyers should list the product standard, tube material, OD, wall thickness, length, quantity, application, required testing method, acceptance criteria, documents, packing method and any special requirements such as internal cleanliness, dryness, no-water testing preference or packing photos before shipment.
